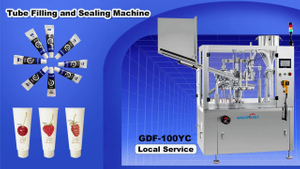

GDF100YC Ointment Tube Filling And Sealing Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Mobile/Wechat/Whatsapp: +86-13787413551
E-mail: sales@grand-packing.com
  • GDF-100YC

  • MIGRAND

  • 8422303090

Availability:

tube filling sealing machine product list

The automatic tube filling sealing machine is a high-quality, high-performance liquid and paste container filling and sealing packaging machine. The machine adopts a series of functions such as automatic tube release,automatic color mark detection, automatic filling, automatic tail sealing, automatic knife cutting, and automatic output of finished products. The machine uses PLC program control, advanced touch-type human-machine interface, photoelectric automatic positioning and tracking, etc., which makes the overall operation simpler and more complete, helps enterprises improve production

efficiency and reduce labor intensity, and is the first choice for improving packaging grades.

What is tube filling and sealing machine?

Tube filling and sealing machine is the semi automatic or full automatic system for unit dose filling and closing of the squeezable plastic, laminate, or metal aluminum tube.


How does a tube filler work?

On full automatic tube filler, the empty tubes will be fed onto the machine from tube bin automatically and then inserted into the tube base. The liquid and semi liquid product will be transferred into the tank by a pump and fill into the empty tube. Then the tube will be closed by sealing or folding ( for metal tubes). The batch No embossing can be added by stainless steel letter embossing.

tube filler sealing type

Application for tube filling sealing machine

The filling and packing object for tube fill sealing machine is liquid and semi-liquid, it could be widely applied in various sectors as following chart:

Sector

Classification




Personal Care & Cosmetic

Bleach cream

Hair color/Hair gel

Lotion

Essence/Face serum

Body/Hand Cream

Facial cleanser

Shampoo (Hair/Body gel)

Washing soap

Toothpaste


Chemical

Wall painting gel/cream

Adhesive

Glue

Pigment

Food

Ketchup

Peanut /fruit Jam

Tomato paste

Mustard

tube filler sample

Main Features

1.The drive part is fully closed under the operation platform, safe and reliable without pollution;

2.Stainless steel operation panel with touch screen

3.Two hanging types of tube bin: inclined or direct

4.Photo electrical eye mark tracking for precision location

5.No tube, no filling

6.Inner side Leister hot air sealing while the external part is equipped with cooling device to reduce temperature

7.Stainless steel letter embossing for EXP,batch No.

8.Various of tube sealing are available, such as curved, slot, rounded corners or customized profiles

9.Alarm for any fault and stop for overload;

10.Auto counting or machine stop at certain quantify


Main Technical Parameters


Model
GD-005
GD-30A
GDY-60YP
GDF-100YC
GDF-160
 Capacity (per min)
10-20 strip tubes
10~20 tubes
40-50 tubes
60-80 tubes
100-150 tubes
Filling volume
1-10ml
2-300 ml/tube or customized
Tube diameter
tube height     (10-100mm)
12-60 mm or customized
Filling error
≤±0.5%(Depends on the pumps)
Main motor power
2.6KW
750W
1.1KW
1.5KW
6.6kw
Sealing power
/
3KW
3KW
3KW
/
Working pressure
0.6MPa
Dimension (mm)
1300*1010*1550
1200*800*1450
1682*950*1941
2270*960*2100
2900*1500*2500
Weight
330kg
380kg
750kg
1250kg
1800kg
